Why is simulation important before creating the mold?

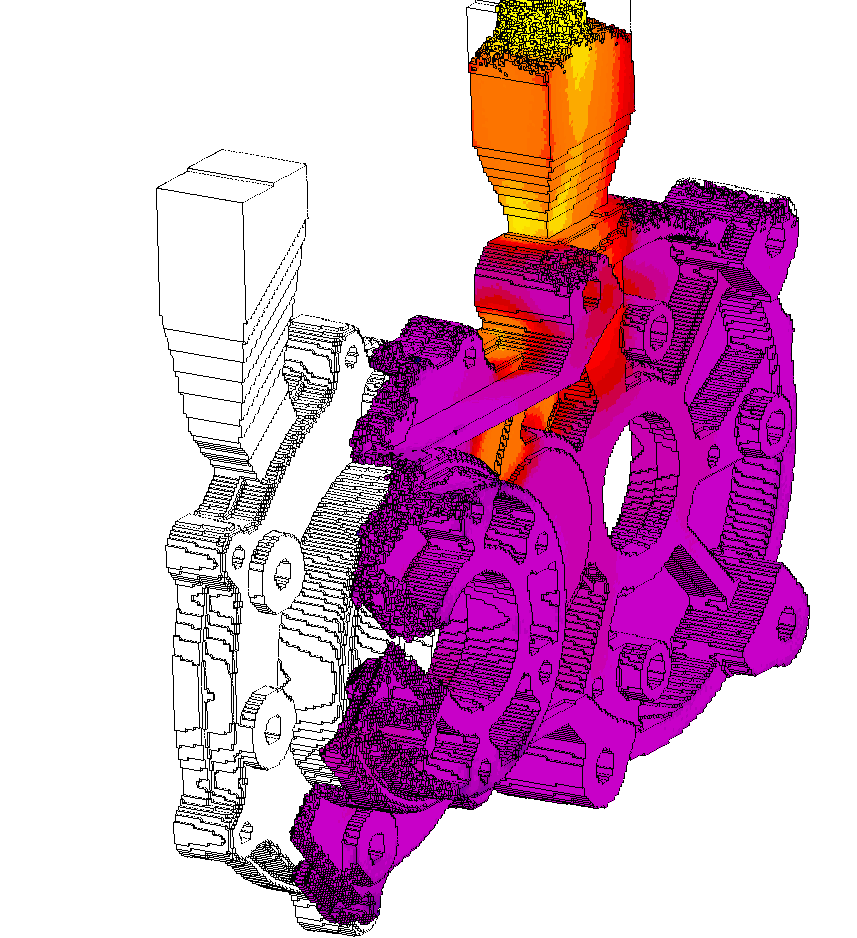

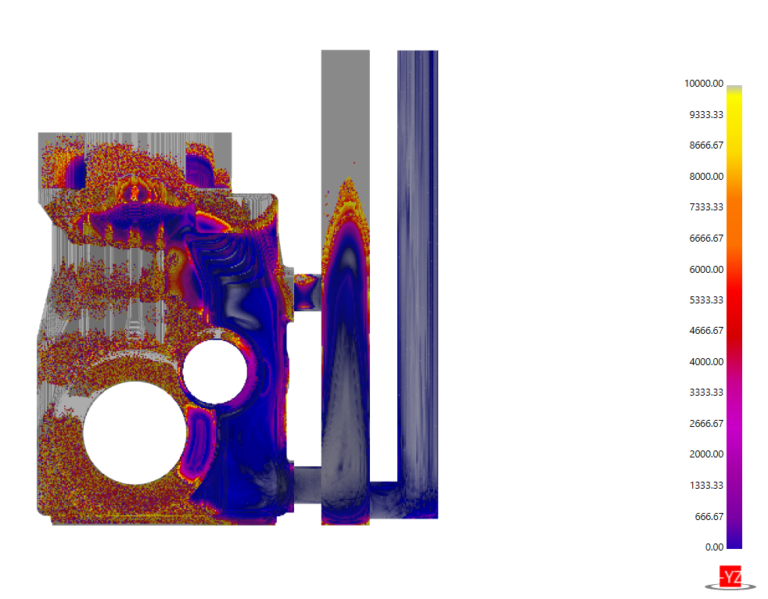

The aluminum casting simulation process is a crucial step in modern foundries, allowing manufacturers to predict and optimize the behavior of molten aluminum before creating the mold. This process uses advanced software to model how the metal will flow, solidify, and interact with the mold, helping to identify potential issues that could arise during the actual casting process. By simulating these conditions, manufacturers can save time, reduce costs, and improve the overall quality of the final product.
Summary
1. Optimizing mold design: Casting simulation allows engineers to test different mold designs virtually, ensuring that the molten aluminum flows evenly and solidifies correctly. Without simulation, molds may be created with design flaws that lead to uneven cooling or turbulence during the pour, which can result in defects like porosity, shrinkage, or incomplete fills. A poorly designed mold would require costly modifications or complete rework, wasting both time and resources.
2.Predicting defects: One of the most significant advantages of simulation is the ability to predict potential defects before the casting process begins. This includes identifying areas where porosity, cold shuts, or shrinkage might occur due to improper flow or cooling rates. By identifying these problem areas beforehand, manufacturers can adjust the mold design or process parameters to minimize defects, ensuring a higher-quality casting.
3.Reducing material waste: Casting aluminum can be expensive, and every failed casting results in wasted material. By running a simulation, foundries can optimize the use of raw materials, reducing the chances of producing defective parts that need to be scrapped. Simulation helps to fine-tune the metal pouring process, ensuring that the correct amount of aluminum is used for each part, minimizing waste.
4.Shortening lead time: Creating a physical mold and running trial castings to test its effectiveness can be a long and costly process. With simulation, this trial-and-error phase is significantly shortened, as most of the testing can be done virtually. This means that the mold can go into production much faster, reducing overall lead time and accelerating the manufacturing process.
5.Enhancing product quality: Simulation not only helps prevent defects but also allows for better control of the mechanical properties of the final product. By accurately predicting how the aluminum will solidify, engineers can ensure that the part has the desired grain structure, strength, and other important qualities. This is particularly important for parts used in industries like aerospace or automotive, where the reliability and durability of components are critical.
6.Cost efficiency: By catching potential issues early in the design phase, simulation reduces the need for costly redesigns or corrections after the mold has been produced. This upfront investment in virtual testing results in significant cost savings down the line, as manufacturers avoid the expense of scrapping defective parts or reworking the mold multiple times.
Real-world applications
•Automotive industry: In the automotive sector, where large volumes of aluminum parts are produced, simulation ensures that the casting process is as efficient as possible. For example, engine blocks and other critical components must be defect-free to ensure safety and performance.
•Aerospace: In aerospace, precision and quality are non-negotiable. Aluminum castings used in aircraft engines or structural components need to meet strict safety standards. Simulation allows manufacturers to predict and mitigate any potential flaws in the casting process.
•Industrial equipment: For large-scale industrial machinery, casting simulation helps ensure that components are free of internal defects, which could lead to premature failure under heavy loads.
Conclusion
Using casting simulation before creating the mold is an indispensable step in modern aluminum casting processes. It provides engineers with the ability to foresee and prevent problems, optimize the use of resources, and ultimately produce higher-quality parts with fewer defects. By investing in simulation, manufacturers not only improve their production efficiency but also ensure that the final product meets the highest standards of quality and reliability.
